JDK 25 RC 1 is out, and as is custom by now, here is a brief overview of the changes to the stop-the-world collectors in OpenJDK for that release.

The full list of changes for the entire Hotspot GC subcomponent for JDK 25 is here, listing around 200 changes in total that were resolved or closed. This matches recent trends.

Let’s start with the interesting change breakdown for JDK 25:

Parallel GC

The most important change for Parallel (and Serial) GC has probably been JDK-8192647.

If your application used JNI extensively, you might have encountered premature VM shutdowns after Retried Waiting for GCLocker Too Often Allocating XXX words warnings. These can not occur any more with either collector beginning with this release.

The fix makes sure that a thread that is blocked to perform a garbage collection due to JNI is guaranteed to have triggered its own garbage collection before giving up.

Serial GC

Fixing the same GCLocker issue as described for Parallel GC.
Serial GC fixes an issue to avoid full GCs in some circumstances in JDK-8346920.

G1 GC

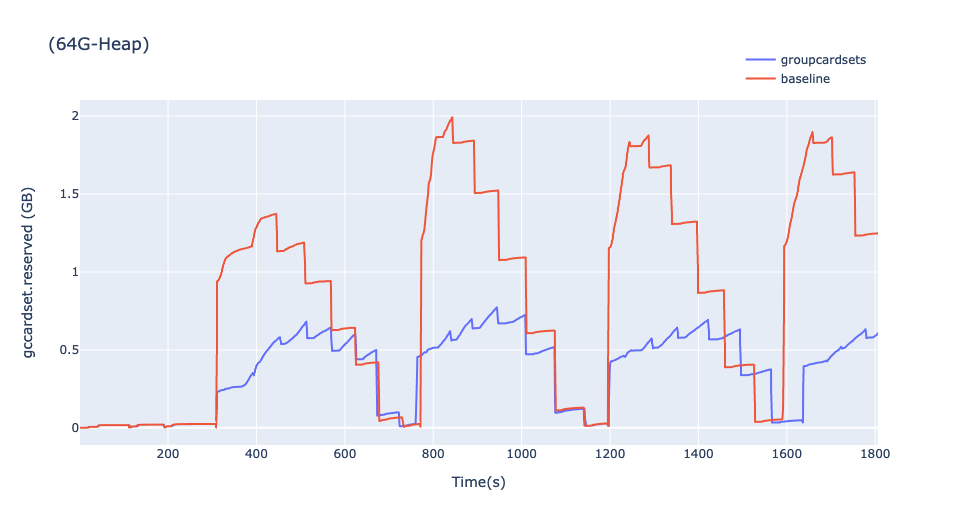

JDK-8343782 enables G1 to merge any old generation region’s remembered set with others for additional memory savings compared to last release. Some graphs can be seen in the PR for this change. The following graph taken from there show a large reduction in remembered set memory usage for that particular, heavy remembered set using, benchmark.

The red line shows remembered set native memory usage for the mentioned benchmark on a 64 GB Java heap, while blue the same for after this patch. Native memory consumption for that part of the VM drops from 2 GB peak to around 0.75 GB peak.
G1 now uses an additional measure to avoid pause time spikes at the end of a old generation Space-Reclamation phase. They were caused by suboptimal selection of candidate regions due to lack of information.

The current process is roughly like this: in the Remark pause, after whole-heap liveness analysis, G1 determines a set of candidate regions that it is going to collect later. It tries to choose the most efficient regions, i.e. where the gain in memory is large, and the effort to reclaim is low. Then, for these candidate regions, from the Remark to the Cleanup pause, G1 recalculates the remembered sets, the data structure containing all references to the live objects in these regions. Remembered sets are required to evacuate objects in the following garbage collection pauses because they contain the locations of references to the evacuation objects. These locations must, after moving, point to the new object locations after all.

Determining the candidate regions is where the cause of the high pause times lies: evacuation efficiency is a weighted sum of amount of live data in the region and the size of the remembered set for that region; G1 prefers to evacuate regions with low liveness and small remembered sets as they are fastest to evacuate. However, at the time the candidate regions are selected, G1 does not have information about the remembered sets, actually G1 plans to recreate this information just after this selection. Until now, G1 solely relied on liveness, assuming that the remembered set size is proportional to remembered set size.

Unfortunately, this is not true in many cases. In the majority of cases this does not matter: evacuation is fast enough anyway and the pause time goal generous enough, but you may have noticed that later mixed collections are typically slower than earlier ones. In the worst case, this behavior causes large pause time spikes typically in the last mixed collection of the Space-Reclamation phase as only the most expensive-to-evacuate regions are left to evacuate.

One option for this problem is to just skip evacuating these regions: but the problem is, the initial candidate selection was based on freeing enough space during the Space-Reclamation phase to continue without a disrupting full heap compaction. So continuously leaving them out from Space-Reclamation can lead to full heap compaction.

The change in JDK-8351405 instead improves the selection mechanism: we do not have the exact metric for the remembered set size at that point, but is there something cheap and fast to calculate that could be a substitute? Actually, yes, there is: during marking, for every region G1 now counts the number of incoming references (just counting, not storing them somewhere) it comes across. This is actually a very good substitute as the remembered set stores these locations, just in a more coarse grained way. Additionally the amount of work to be done in the garbage collection pause is proportional to the number of references after all.

G1 uses this much more accurate efficiency information during candidate selection in the Remark pause. This avoids these pause time spikes.

The following figure from the PR shows the impact of this change in pause time:

It shows mixed gc pause times for JDK 25 (brown), JDK 24 (purple), and JDK 25 with the change (green) with a pause time goal of 200ms - the default. The former two graphs show that the last mixed gc in the Space-Reclamation phase is always very long (that the spike is the last can be deduced by the large amount of time between these mixed garbage collections - there are some young-only garbage collection pauses not shown inbetween). As one can see, this technique completely eliminates these spikes taking up to 400ms.
The write-barrier improvements explained in this post originally scheduled for JDK 25 did not make it in time due to process issues. Hopefully it can make it for JDK 26.
There were some (here and here) fixes to avoid some superfluous garbage collection pauses in some edge cases. Another change improves performance of certain garbage collections.

What’s next

Currently a lot of effort in the G1 area is spent on implementing Automatic Heap Sizing for G1: an effort where G1 automatically determines a maximum Java heap size that is efficient and does not blow the available memory budget by tracking free memory in the environment, and adjusting heap size accordingly.

A few changes necessary for automatic heap sizing (like above fixes that avoid superfluous garbage collection pauses, but also here or there) already landed in JDK 26, and a few stepping stones are out for review (e.g. this and that).
Another JEP we would like to complete in this release time frame is to make ergonomics always select G1 as default collector to avoid any more confusion about this particular topic :)

Thanks go to…

… as usual to everyone that contributed to another great JDK release. Looking forward to see you next (even greater) release.

Thomas
